e:bike WALLwall charger for 4 e-bikes
Charge up to 4 e-bikes at once at home, at work, in hotels or public places. Universal or Bosch connectors, optional Bosch or Shimano STePS power supplies, IP54 rating. Designed and manufactured in the Czech Republic.
from CZK 34 969 incl. VAT · CZK 28 900 excl. VAT
E-bike charging made easy
Up to 4 e-bikes
Charge up to 4 e-bikes at the same time. The station can also be fitted only partially.

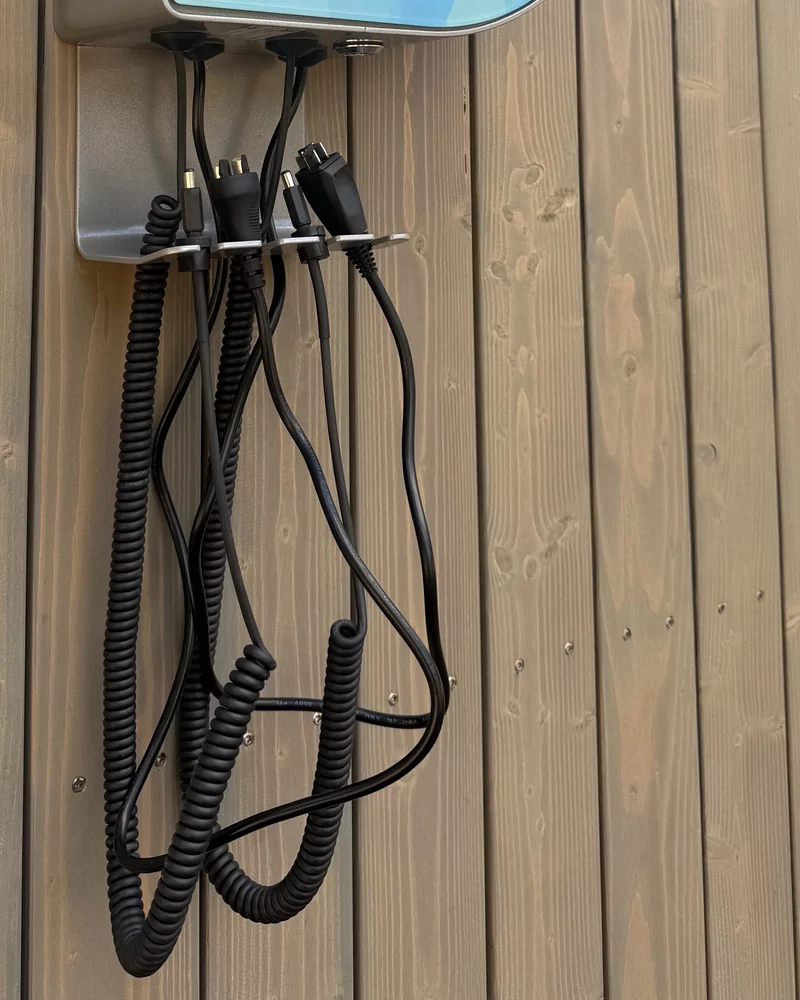

Connectors to match your bikes
Universal connectors, Bosch ACTIVE and Bosch SMART connectors or a combination. Optional magnetic detachable connectors.
36 V compatibility
For 36 V e-bikes and batteries, which make up about 98 % of e-bikes on the Czech market.
Bosch and Shimano supplies
Universal non-communicating power supplies as standard, optionally communicating Bosch or Shimano STePS supplies.
Safe operation
DC output protected by a fuse, autonomous operation, IP54 rating, operating temperature −30 to +50 °C.
Aluminium and glass
Aluminium body with a glass front panel in Bloom or Polar blue.
One station for different bike brands
Choose the connectors to match the bikes you will charge. The configuration can be changed later if a bike of another brand is added.
- 4× universal connector
- 2× universal + 1× Bosch SMART + 1× Bosch ACTIVE
- 2× Bosch ACTIVE + 2× Bosch SMART
- Optional magnetic detachable connectors
Glass in Bloom or Polar blue
- Aluminium body and tempered glass front panel.
- Two standard glass patterns: Bloom and Polar blue.
- We can also make your own graphics to order, for example with a company or town logo.
- IP54 for mounting on a facade or indoors.

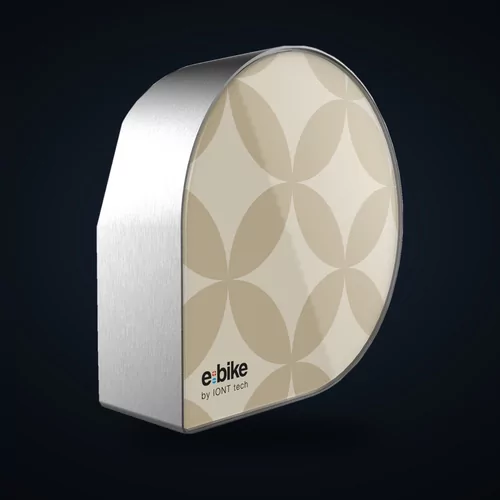

Bloom

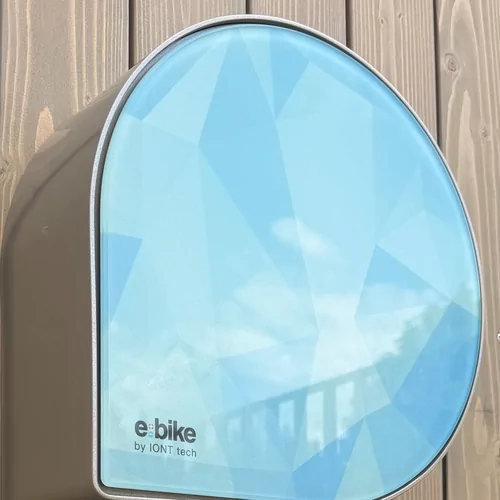

Polar blueFor homes, businesses and tourists
Family homes
Charge the whole family’s bikes in one place, on the facade or in the garage.
Towns and cycle routes
Charging on tourist routes and at information centres, with possible subsidies.
More →e:bike WALL in numbers
| Supply | 1× 230 V AC |
|---|---|
| Circuit breaker | 1× 16 A |
| Output voltage | max. 42 V DC |
| Number of charging cables | 4 |
| Connectors | 4× universal; optionally 2× UNI + 1× Bosch SMART + 1× Bosch ACTIVE, or 2× Bosch ACTIVE + 2× Bosch SMART |
| Magnetic detachable connectors | optional |
| Power supplies | universal non-communicating, optionally Bosch or Shimano STePS with communication |
| DC output protection | fuse |
| Compatibility | 36 V e-bikes and batteries |
| Access control | autonomous |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Materials | aluminium body, glass front panel |
| Front panel pattern | Bloom, Polar blue |
| Warranty | 2 years |
| Manufacturing | Czech Republic |

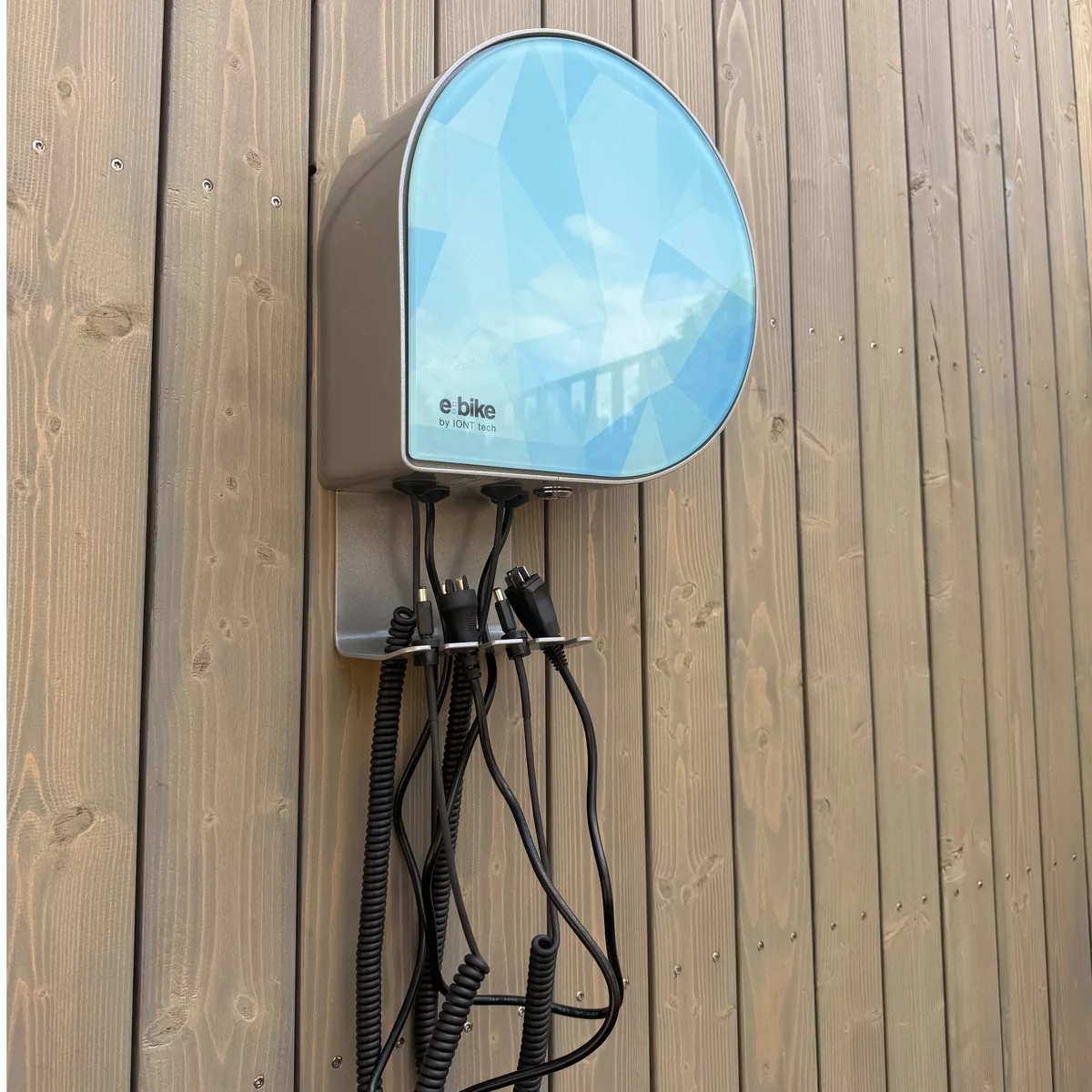

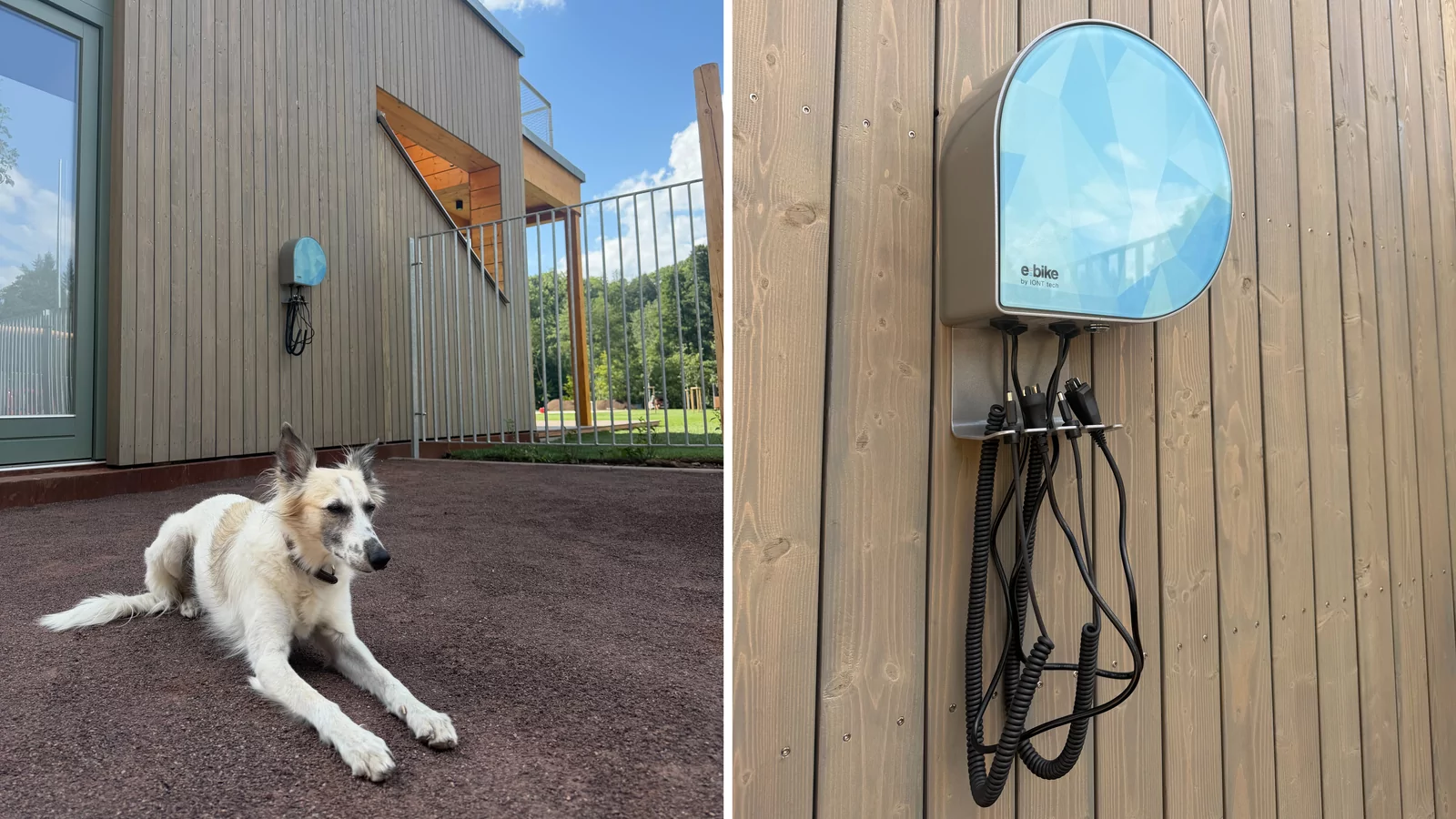

e:bike WALL on a house facade
Frequently asked questions
Will the e:bike WALL charge my e-bike?
The station is designed for 36 V e-bikes and batteries, which make up about 98 % of e-bikes on the Czech market. Choose connectors to match your bikes: universal, Bosch ACTIVE, Bosch SMART or a combination.
How many bikes can it charge at once?
Up to 4 e-bikes at the same time. The station can also be fitted only partially.
Does it work with Bosch and Shimano systems?
Yes. It comes with universal power supplies as standard, which can be replaced with communicating Bosch or Shimano STePS supplies.
Can the station be installed outdoors?
Yes. The IP54 rating allows indoor and outdoor installation, with an operating temperature of −30 to +50 °C.
What is needed for installation?
A 1× 230 V supply protected by a 16 A breaker. Installation is carried out by certified IONT partners.
What is the warranty?
e:bike charging stations come with a 2-year warranty.
E-bike charging for your home or business
We will help you choose the connectors and prepare a quote. For more bikes there is the e:bike BAR stand.
