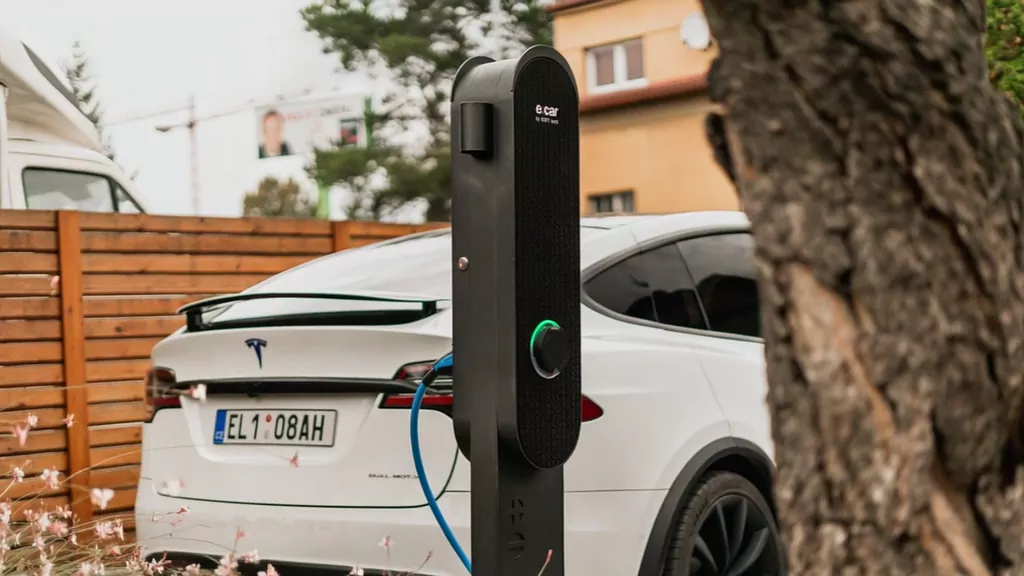

e:car COLUMNcharging column for two cars
Free-standing AC station with two outputs of 2× 22 kW, an MID-certified billing meter for each output, a 5″ display, OCPP 1.6J and 2.0.1 and QR payment under the AFIR regulation. Designed and manufactured in the Czech Republic.
from CZK 95 590 incl. VAT · CZK 79 000 excl. VAT
Public and workplace charging in one column
MID billing meters
Each output has its own MID-certified energy meter. Measured consumption is the basis for billing and payments in the OCPP system.
AFIR payment
When operated on an OCPP back end, the display shows a QR code for payment. The station complies with the AFIR regulation for public charging.
5″ display
Charging information, QR code for payment and promotional video or static visuals. RGB status indication.
OCPP, Modbus and power sharing
LAN, OCPP 1.6J and 2.0.1, Modbus TCP, over-the-air updates (OTA). Load Balance splits the supply capacity between stations (requires IONT meter).
RFID access
Authorisation with 13.5 MHz RFID cards and tags; users can be identified for cost allocation.
Protection on every output
Integrated RCD AC 30 mA + DC 6 mA for each output. Temperature sensors in the power electronics, in the cable version also in the connectors.
Two sockets or two tethered cables
Both configurations are PREMIUM AFIR versions with the same equipment, in Burberry stripes and Antracit stripes.
Socket / socket
Two Type 2 sockets with motorised lock for the vehicle’s own cable.
Cable / cable
Two tethered Type 2 cables, 5 m as standard, other lengths on request.
Ground stand
Complete stand for setting in concrete, to anchor the column without a load-bearing wall.
A station you can see
In a full car park a wall charger is easy to miss. The e:car COLUMN is 177 cm tall, so it stands out above car roofs, and only 17.5 cm wide, so it fits in a row between bays. One column serves two cars at once.
- 177 cm tall, above the roofs of ordinary cars
- 17.5 cm wide, 32.8 cm deep
- Two outputs for two adjacent bays
- Free-standing, no load-bearing wall needed
Payment without registration
Since 13 April 2024, newly installed public charging points in the EU must allow ad hoc payment without registration or a contract.
A physical payment terminal is mandatory for DC stations from 50 kW. For lower-power AC stations, secure online payment is sufficient, for example via a dynamic QR code.
When operated on an OCPP back end, the e:car COLUMN shows the QR code directly on its display. We can also take over the operation of a public station, including payments and settlement.
Steel, glass and your own design
- Free-standing steel column with Komaxit powder coating and glass panels.
- Lockable with a shaped lock.
- Glass panels in Burberry stripes and Antracit stripes, or with your company graphics to order.
- IP54 for indoor and outdoor use, operation from −30 to +50 °C.
- Push-in wire terminals.
e:car COLUMN in numbers
| Supply | 3× 400 V AC, 50 Hz (optionally 1× 230 V AC) |
|---|---|
| Charging power | 2× 22 kW |
| Outputs | 2× Type 2 socket with motorised lock, or 2× tethered Type 2 cable (5 m as standard) |
| Metering | 2× MID-certified billing meter |
| Protection | RCD AC 30 mA + DC 6 mA for each output |
| Temperature sensors | power electronics; cable version also connectors and both cable ends |
| Payment | QR code for payment when operated on an OCPP back end |
| Communication | LAN, OCPP 1.6J, OCPP 2.0.1, Modbus TCP |
| Power management | Load Balance (with IONT meter) |
| Authorisation | RFID 13.5 MHz |
| Display | 5″ |
| Updates | over the air (OTA) |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Construction | free-standing, steel with Komaxit coating, glass panels, shaped lock |
| Dimensions | 1770 × 175 × 328 mm |
| Standards | IEC 61851, IEC 62196, AFIR regulation |
| Warranty | 2 years on the unit, 3 years on the power electronics |
| Manufacturing | Czech Republic |
Download the e:car COLUMN catalogue (PDF) → Charging time calculator →
e:car COLUMN at our customers
Frequently asked questions
Does the e:car COLUMN comply with AFIR?
Yes. When operated on an OCPP back end, the display shows a QR code for ad hoc payment, which AFIR allows for AC stations below 50 kW. AFIR requires a physical terminal only for DC stations from 50 kW.
Can it charge two cars at once?
Yes. The column has two outputs of up to 22 kW each. With IONT meter it splits the available supply capacity between several stations.
Can consumption be allocated?
Yes. Each output has its own MID-certified billing meter, and users can be identified with RFID cards.
Which back end does the station work with?
Any back end that supports OCPP 1.6J or 2.0.1. Modbus TCP is available for smart home or energy management systems.
How is the column anchored?
On a ground stand that is set in concrete. Installation and commissioning are carried out by certified IONT partners.
What is the warranty?
2 years on the unit and 3 years on the power electronics.
Charging for a company or municipal car park
We will prepare a quote based on the number of charge points, your supply and how the stations will be operated. Stations are in stock in our e-shop.
