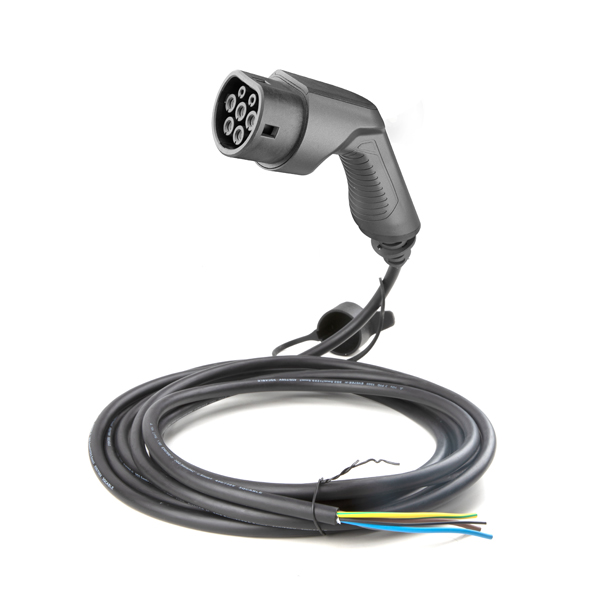

Open-end Type 2 cable for station integration
Charging cable with a Type 2 connector at one end and an open end at the other, for three-phase charging at up to 22 kW. It is intended for manufacturers and developers of charging stations to integrate into their own equipment. The cable is not a stand-alone unit and must be installed by a qualified person.
Key features
For station integration
The open end is connected inside the charging station. The cable is not a stand-alone unit.
Temperature protection
Temperature sensor that stops charging automatically when 100 °C is reached.
Temperature-compensated contacts
The contacts compensate for thermal expansion of the material, keeping power transfer stable even at high currents.
Connector protection
A rubber cap protects the pins from dirt, dust and moisture. IP55 rated.
Technical specifications
| Charging power | up to 22 kW, three-phase charging |
|---|---|
| Connector | Type 2 (IEC 62196-2), other end open |
| Length | 5, 8, 10 or 12 m |
| Temperature protection | sensor in the connector, cut-off at 100 °C |
| Contacts | dynamic temperature compensation |
| Pin protection | rubber cap on the connector |
| Ingress protection | IP55 |
| Application | for integration into a charging station; not a stand-alone unit |
| Standards | IEC 62196-1, IEC 62196-2, IEC 61851-1, EN 50620 |
| Warranty | 3 years |
| Manufactured in | Czech Republic |
Station integration
For technical questions about connecting the cable to your own charging station, please contact IONT. Other cables are listed on the charging cables page.
