Overview

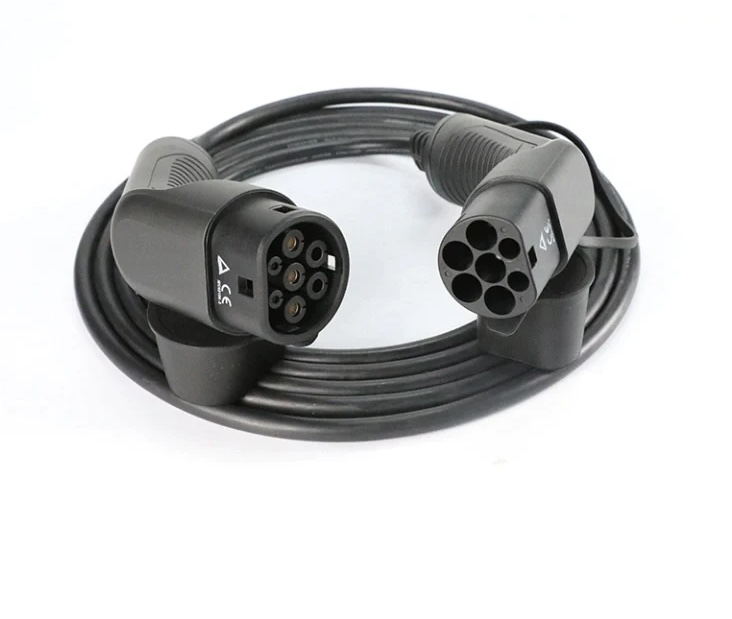

Three-phase Type 2 to Type 2 charging cable
Connecting cable between an electric vehicle and a charging station for three-phase charging at up to 11 kW. Temperature sensors in both connectors and IP55 protection make it suitable for everyday use and for travel. Designed and manufactured in the Czech Republic.
Key features
Temperature protection
Temperature sensors in both connectors. The cable stops charging automatically when 100 °C is reached.
Temperature-compensated contacts
The contacts compensate for thermal expansion of the material, keeping power transfer stable even during long charging sessions.
Connector protection
Rubber caps protect the pins from dirt, dust and moisture. IP55 rated.
Warranty
3 years.
Technical specifications
| Voltage | 400 V AC, three-phase |
|---|---|
| Charging power | up to 11 kW |
| Current | 3 × 16 A |
| Connectors | Type 2 to Type 2 (IEC 62196-2) |
| Length | 5 to 12 m (in 1 m steps) |
| Compatibility | vehicles and stations with a Type 2 connector; a vehicle with a 22 kW on-board charger charges at up to 11 kW with this cable |
| Temperature protection | sensors in both connectors, cut-off at 100 °C |
| Contacts | dynamic temperature compensation |
| Pin protection | rubber caps on connectors |
| Ingress protection | IP55 |
| Standards | IEC 62196-1, IEC 62196-2, IEC 61851-1, EN 50620 |
| Warranty | 3 years |
| Manufactured in | Czech Republic |
Choosing a cable
An overview of charging cables, power ratings and lengths is available on the charging cables page. Technical data sheets can be downloaded from the documents section.
