Overview

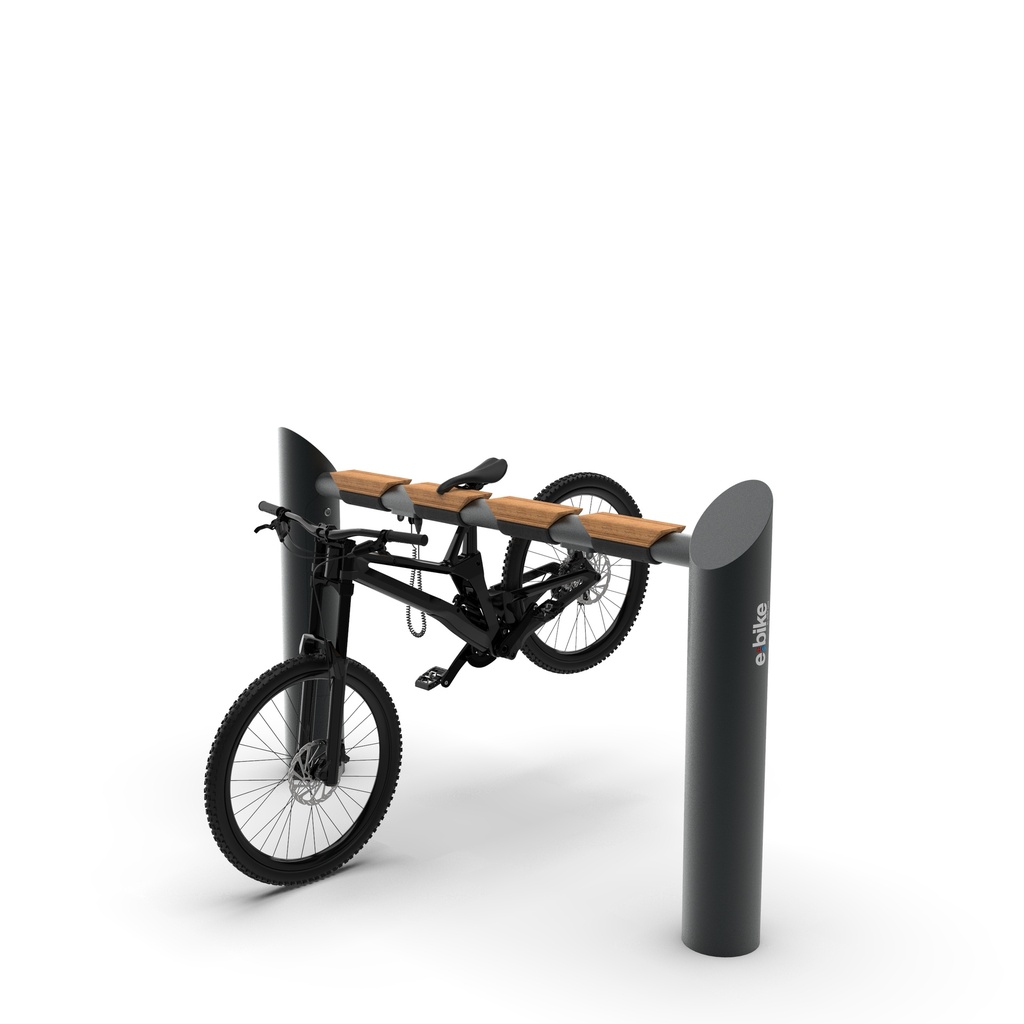

Modular charging rack for 4 e-bikes
e:bike BAR is a charging rack for up to 4 e-bikes at once, designed for high-traffic locations such as bike parks, businesses, hotels and residential buildings. It is supplied from 230 V AC, and IP54 protection allows indoor and outdoor placement. Designed and manufactured in the Czech Republic.
Key features
Modular configuration
The standard configuration provides 4 charging points. The number of points and the length of the rack can be adapted to the space and technical requirements.
Partial fit-out
The rack can be fitted with charging only partially, combining points with and without charging.
36 V compatibility
Designed for 36 V e-bikes and batteries, which account for approximately 98% of e-bikes on the Czech market.
Power supplies and connectors
Supplied with universal non-communicating power supplies, which can be replaced with communicating Bosch or Shimano STePS units. Universal or Bosch connectors depending on the chosen configuration.
Frame protection
Wooden support surfaces hold the bike firmly and are gentle on the paintwork. Foam panels at the bottom of the rack absorb impacts and protect the frame from scuffing.
Build
IP54 protection for indoor and outdoor use, operation from −30 to +50 °C. The DC output is protected by a device fuse.
Technical specifications
| Supply | 230 V AC |
|---|---|
| Circuit breaker | 16 A |
| Output voltage | max. 42 V DC |
| Charging cables | 1–4, modular |
| Connectors | 4× universal; optionally 2× UNI + 1× Bosch SMART + 1× Bosch ACTIVE, or 2× Bosch ACTIVE + 2× Bosch SMART |
| Power supplies | universal non-communicating, optionally communicating Bosch or Shimano STePS |
| DC output protection | device fuse |
| Compatibility | 36 V e-bikes and batteries |
| Access control | autonomous |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Support surfaces | wood, foam panels |
| Warranty | 2 years |
| Manufactured in | Czech Republic |
Rack configuration
The number of charging points, connector type and rack length can be tailored to the location. Installation and commissioning are carried out by certified IONT partners.
