Overview

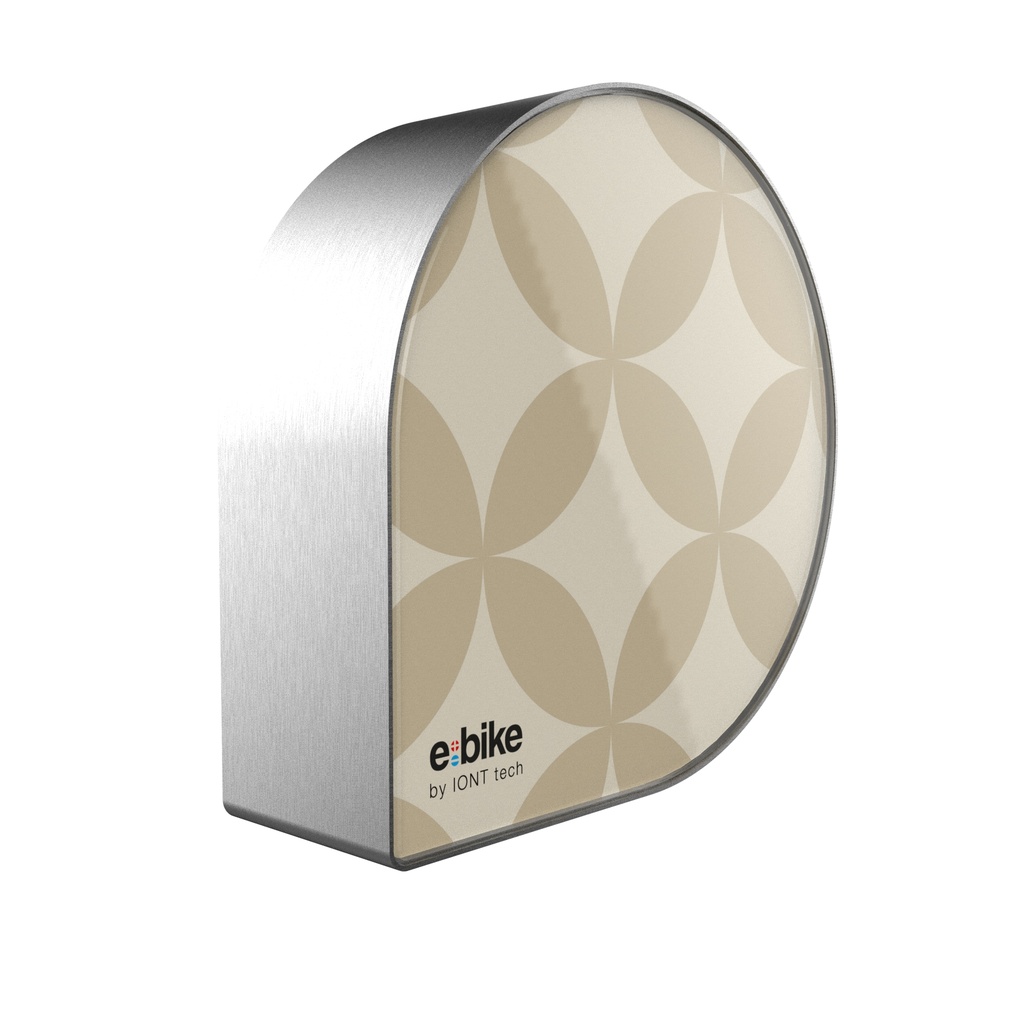

Wall-mounted charging station for 4 e-bikes
e:bike WALL is a wall-mounted station for charging up to 4 e-bikes at once, intended for homes, businesses, hotels and public spaces. It is supplied from 1× 230 V AC, and IP54 protection allows installation indoors and outdoors. Designed and manufactured in the Czech Republic.
Key features
Up to 4 e-bikes
Charges up to 4 e-bikes at once. The station can also be fitted only partially, as required.
Connectors to suit the bikes
Universal connectors, Bosch ACTIVE and Bosch SMART connectors, or a combination. Magnetic detachable connectors are available as an option.
36 V compatibility
Designed for 36 V e-bikes and batteries, which account for approximately 98% of e-bikes on the Czech market.
Power supplies
Supplied with universal non-communicating power supplies, which can be replaced with communicating Bosch or Shimano STePS units.
Construction
Aluminium body with a glass front panel in the Bloom or Polar blue pattern.
Build
IP54 protection for indoor and outdoor use, operation from −30 to +50 °C. The DC output is protected by a device fuse.
Technical specifications
| Supply | 1× 230 V AC |
|---|---|
| Circuit breaker | 1× 16 A |
| Output voltage | max. 42 V DC |
| Charging cables | 4 |
| Connectors | 4× universal; optionally 2× UNI + 1× Bosch SMART + 1× Bosch ACTIVE, or 2× Bosch ACTIVE + 2× Bosch SMART |
| Magnetic detachable connectors | optional |
| Power supplies | universal non-communicating, optionally communicating Bosch or Shimano STePS |
| DC output protection | device fuse |
| Compatibility | 36 V e-bikes and batteries |
| Access control | autonomous |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Materials | aluminium body, glass front panel |
| Front panel pattern | Bloom, Polar blue |
| Warranty | 2 years |
| Manufactured in | Czech Republic |
Station configuration
The type of power supplies and connectors is chosen according to the project requirements. Installation and commissioning are carried out by certified IONT partners.
