Overview
Free-standing AC charger with two tethered Type 2 cables
e:car COLUMN double PREMIUM AFIR is a free-standing AC charging station with two tethered Type 2 cables for charging two vehicles simultaneously at 2× 22 kW. It is designed for public and commercial charging sites; each output has its own MID billing meter and the station complies with the AFIR regulation. Designed and manufactured in the Czech Republic.
Key features
Two charging points
Two tethered Type 2 cables for charging two vehicles at once, up to 22 kW per output. Standard cable length is 5 m.
Protection on each output
Integrated residual current protection AC 30 mA + DC 6 mA on each output. Temperature sensors in the power electronics and connectors; each cable has a sensor at both ends and charging stops if the limit is exceeded.
MID billing meters
Each output has its own MID-certified energy meter. Measured consumption serves as the basis for billing and payment in an OCPP system.
Control and management
Load Balance adjusts power to the capacity of the supply and shares the available power across multiple stations; it requires IONT meter. LAN, OCPP 1.6J and 2.0.1, Modbus TCP communication, remote software updates (OTA).
Display and status light
The 5″ display shows charging information, video and static visuals. RGB status indication, access control via 13.56 MHz RFID.
Construction
Free-standing column in Komaxit powder-coated steel with glass panels, secured by a shaped lock. IP54 rating, operation from −30 to +50 °C.
Technical specifications
| Supply | 3× 400 V AC, 50 Hz (optionally 1× 230 V AC, 50 Hz) |
|---|---|
| Charging power | 2× 22 kW |
| Connector | 2× Type 2, tethered cable 5 m (optionally 8, 10 or 12 m) |
| Protection | RCD AC 30 mA + DC 6 mA on each output |
| Temperature sensors | power electronics, connectors, both cable ends |
| Energy metering | 2× MID billing meter |
| Communication | LAN, OCPP 1.6J, OCPP 2.0.1, Modbus TCP |
| Power management | Load Balance (with IONT meter) |
| Authorisation | RFID 13.56 MHz |
| Updates | OTA, remote |
| Display | 5″ |
| Payment | QR code for payment via a terminal when operated on an OCPP back end |
| Status indication | RGB |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Construction | free-standing, Komaxit powder-coated steel, glass panels, shaped lock |

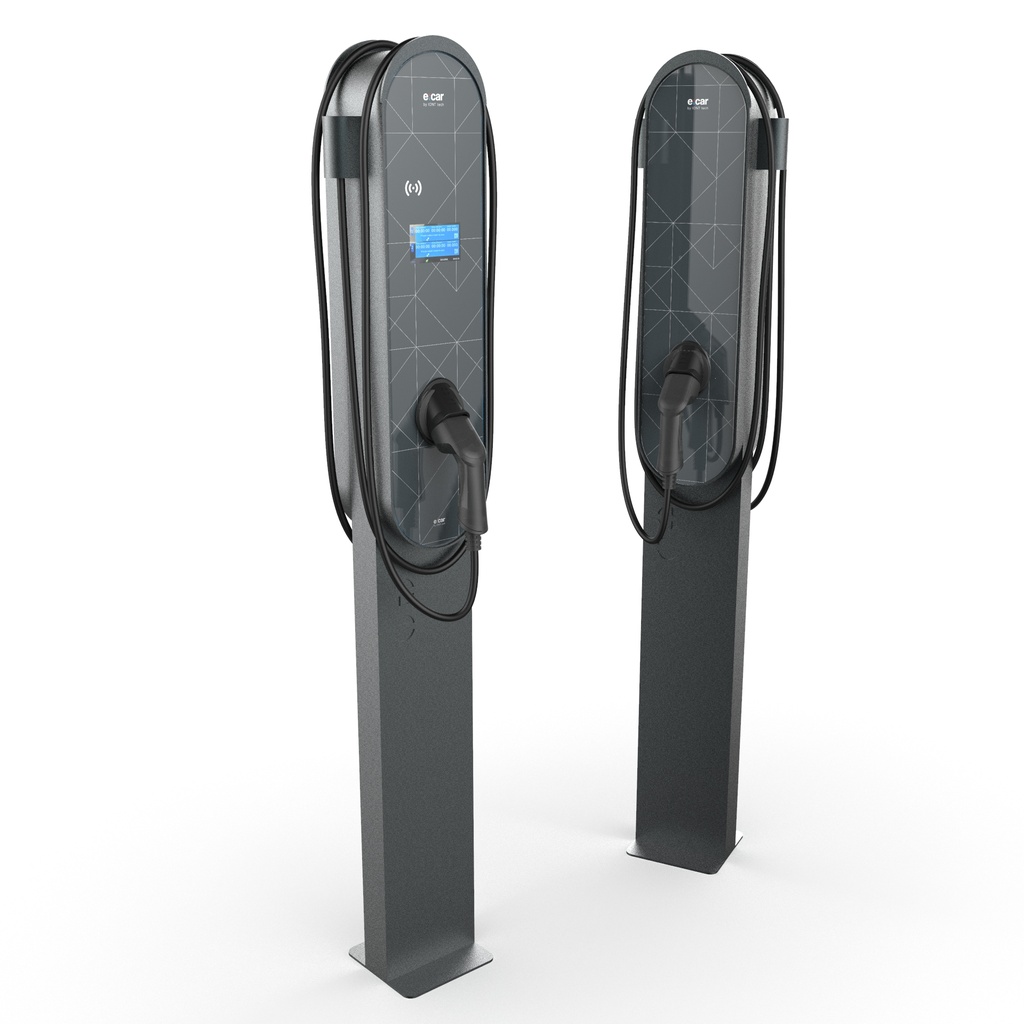

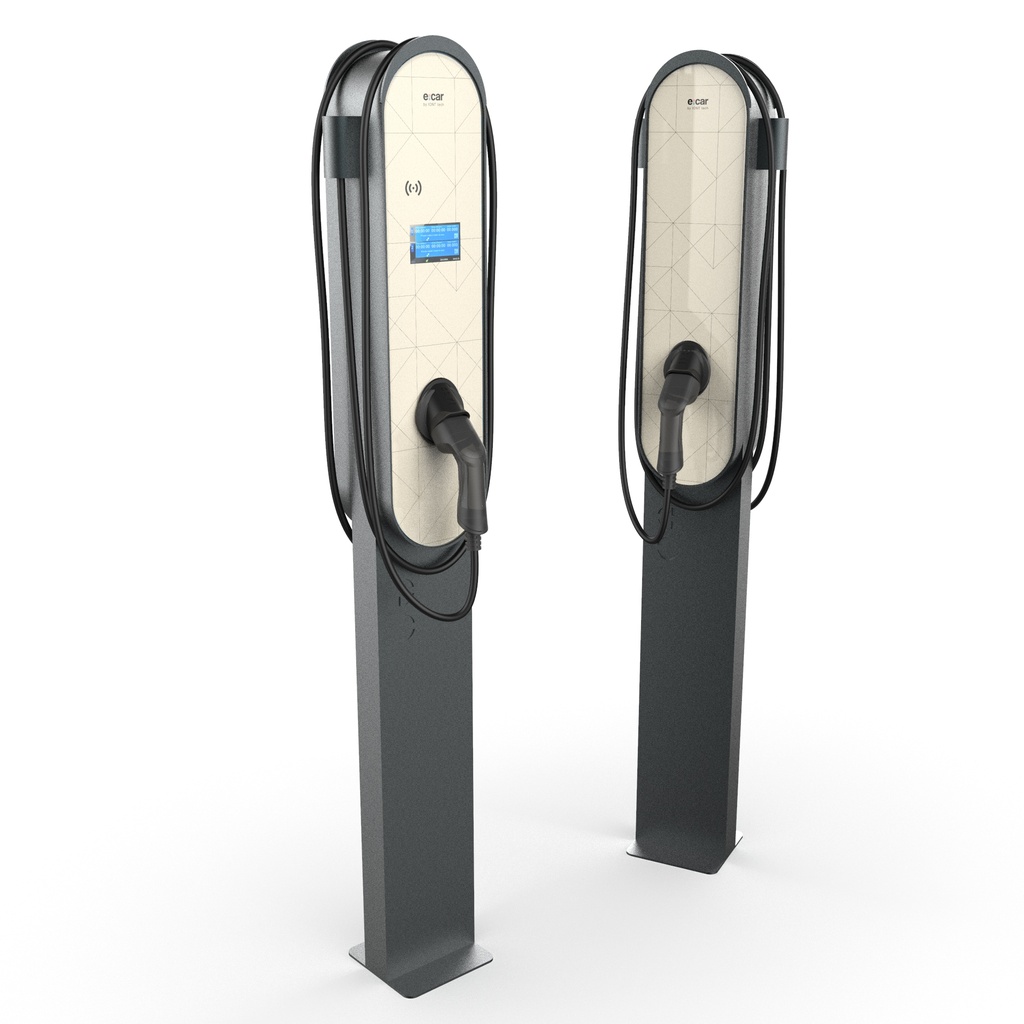

| Front panel | Burberry stripes, Antracit stripes |
| Dimensions | 1770 × 175 × 328 mm |
| Wire connection | push-in terminals |
| Standards | IEC 61851, IEC 62196, AFIR regulation |
| Manufactured in | Czech Republic |
| Warranty | 2 years on the device, 3 years on the power electronics |
Station configuration
We prepare the configuration for a specific site, including cable lengths and access control, on request. Installation and commissioning are carried out by certified IONT partners.
