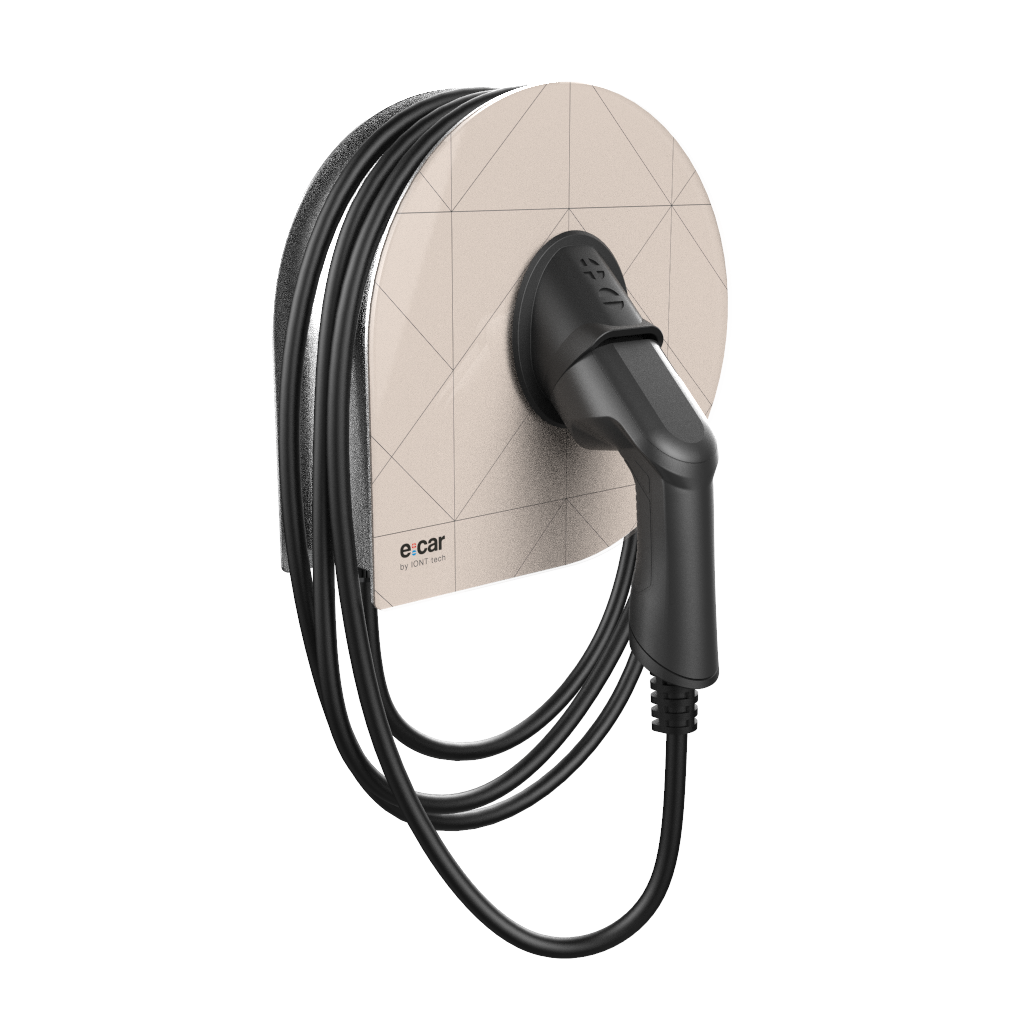

Wallbox e:car WALL single cable SMART
Overview
Three-phase AC charger with tethered Type 2 cable
The e:car WALL single SMART charges at up to 22 kW and adjusts its output to the building's consumption to avoid overloading the supply connection. A stainless-steel body with tempered glass and IP54 protection allow installation indoors and outdoors. Designed and manufactured in the Czech Republic.
Key features
Power management
Normal, Eco and Boost modes. A built-in meter on the main supply measures household consumption and export to the grid. The station does not communicate with the inverter, so it works with photovoltaic systems of any make, including after a replacement.
Residual current protection
Integrated EV protection device (AC 30 mA + DC 6 mA); no Type B RCD is required.
Thermal protection
Sensors in the power electronics and at both ends of the cable. Charging stops if the limit is exceeded.
Connectivity
Wi-Fi and LAN, management in the IONT.info app, RFID access and over-the-air (OTA) firmware updates. Via Modbus TCP the station can be controlled from Home Assistant, Loxone or a building energy management system.
Construction
Stainless-steel body and tempered glass, IP54 rating, operation from −30 to +50 °C.
Warranty
2 years on the unit, 3 years on the power electronics.
Technical specifications
| Supply | 3× 400 V AC, 50 Hz |
|---|---|
| Charging power | up to 22 kW, adjustable |
| Connector | Type 2, tethered 5 m cable (8, 10 or 12 m optional) |
| Protection | EV protection device AC 30 mA + DC 6 mA |
| Temperature sensors | power electronics, connector and cable |
| Metering | energy consumption in kWh, grid frequency, voltage and current |
| Communication | Wi-Fi, LAN, Modbus TCP |
| Authorisation | autonomous mode, RFID, IONT.info app |
| Status indication | RGB indicator |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Dimensions | 300 × 228 mm |
| Front panel | Burberry stripes, Antracit stripes, White |
| Wire connection | push-in terminals |
| Standards | IEC 61851, IEC 62196 |
| Manufacturing | Czech Republic |
Charging modes
| Normal | Output follows the building's current consumption. |
|---|---|
| Eco | Charges primarily from photovoltaic surplus. |
| Boost | Maximum set output regardless of consumption. |
IONT.info app
Overview
Charging statistics and history.
Access
Remote authorisation, management of RFID cards and users.
Scheduling
Charging times set by tariff or operating hours.
Multiple stations
Several stations managed from one account.
Choosing a variant
The station comparison sets out the differences between BASIC and SMART, cable and socket, together with power recommendations. Installation and commissioning are carried out by certified IONT partners.
