Overview

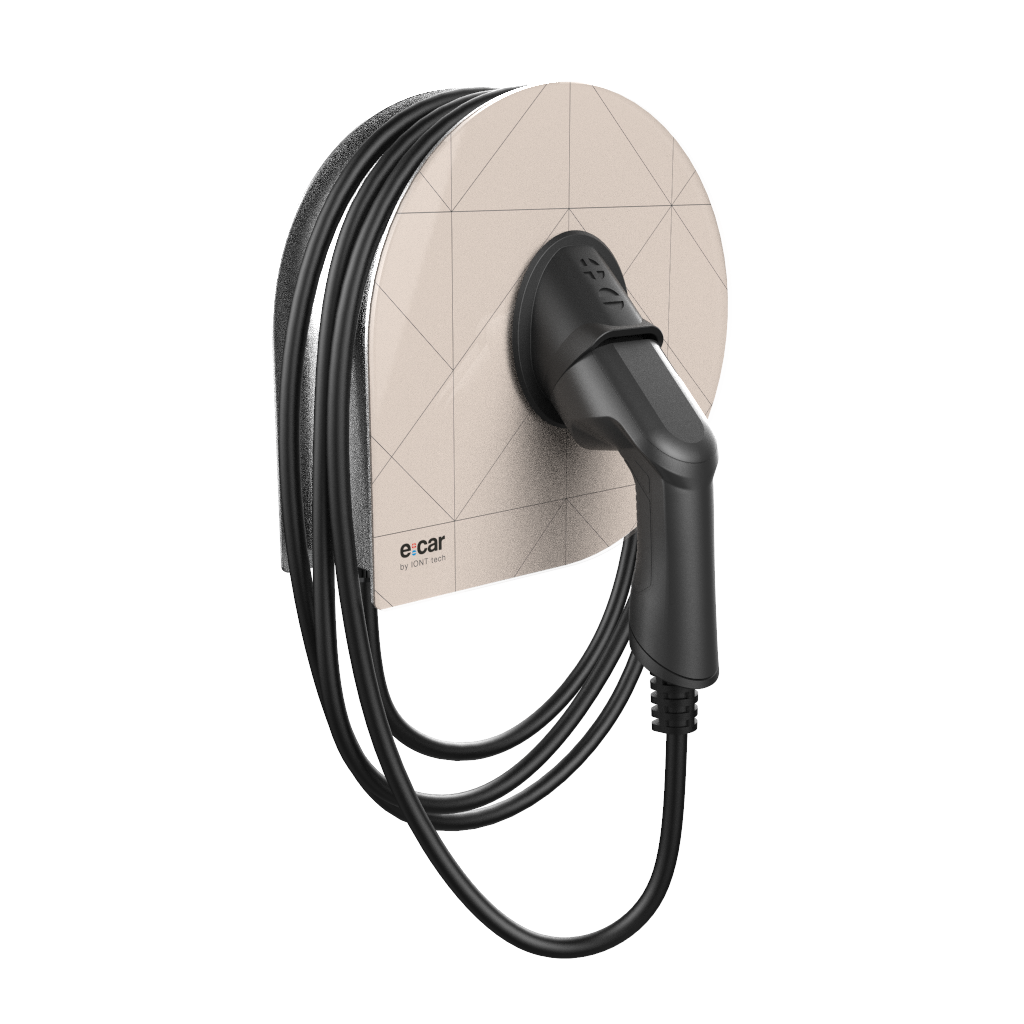

Three-phase AC charger with tethered Type 2 cable
The e:car WALL single BASIC is an AC charging station for electric and plug-in hybrid vehicles, rated at up to 22 kW. An integrated EV protection device, a stainless-steel body with tempered glass and IP54 protection make it suitable for home and business charging, indoors and outdoors. Designed and manufactured in the Czech Republic.
Key features
Tethered Type 2 cable
5 m cable, with 8, 10 or 12 m available as options. The ergonomic connector withstands a load of 2 t.
Residual current protection
Integrated EV protection device (AC 30 mA + DC 6 mA); no Type B RCD is required.
Thermal protection
Sensors in the power electronics and at both ends of the cable. Charging stops if the temperature exceeds 100 °C.
RGB indicator
The indicator dims automatically after sunset and brightens again at sunrise. Colours can be customised.
Construction
Stainless-steel body and tempered glass, IP54 rating, operation from −30 to +50 °C. A lockable housing with a shaped lock protects against unauthorised access and vandalism.
Warranty
2 years on the unit, 3 years on the power electronics.
Technical specifications
| Supply | 3× 400 V AC, 50 Hz or 230 V AC, 50 Hz |
|---|---|
| Charging power | up to 22 kW, adjustable |
| Connector | Type 2, tethered 5 m cable (8, 10 or 12 m optional) |
| Protection | EV protection device AC 30 mA + DC 6 mA |
| Temperature sensors | power electronics, connector and cable |
| Control | autonomous |
| Status indication | RGB indicator |
| Ingress protection | IP54, indoor and outdoor |
| Operating temperature | −30 to +50 °C |
| Dimensions | 300 × 228 mm |
| Front panel | Burberry stripes, Antracit stripes, White |
| Wire connection | push-in terminals |
| Standards | IEC 61851, IEC 62196 |
| Manufacturing | Czech Republic |
Choosing a variant
The station comparison sets out the differences between BASIC and SMART, cable and socket, together with power recommendations. Installation and commissioning are carried out by certified IONT partners.
